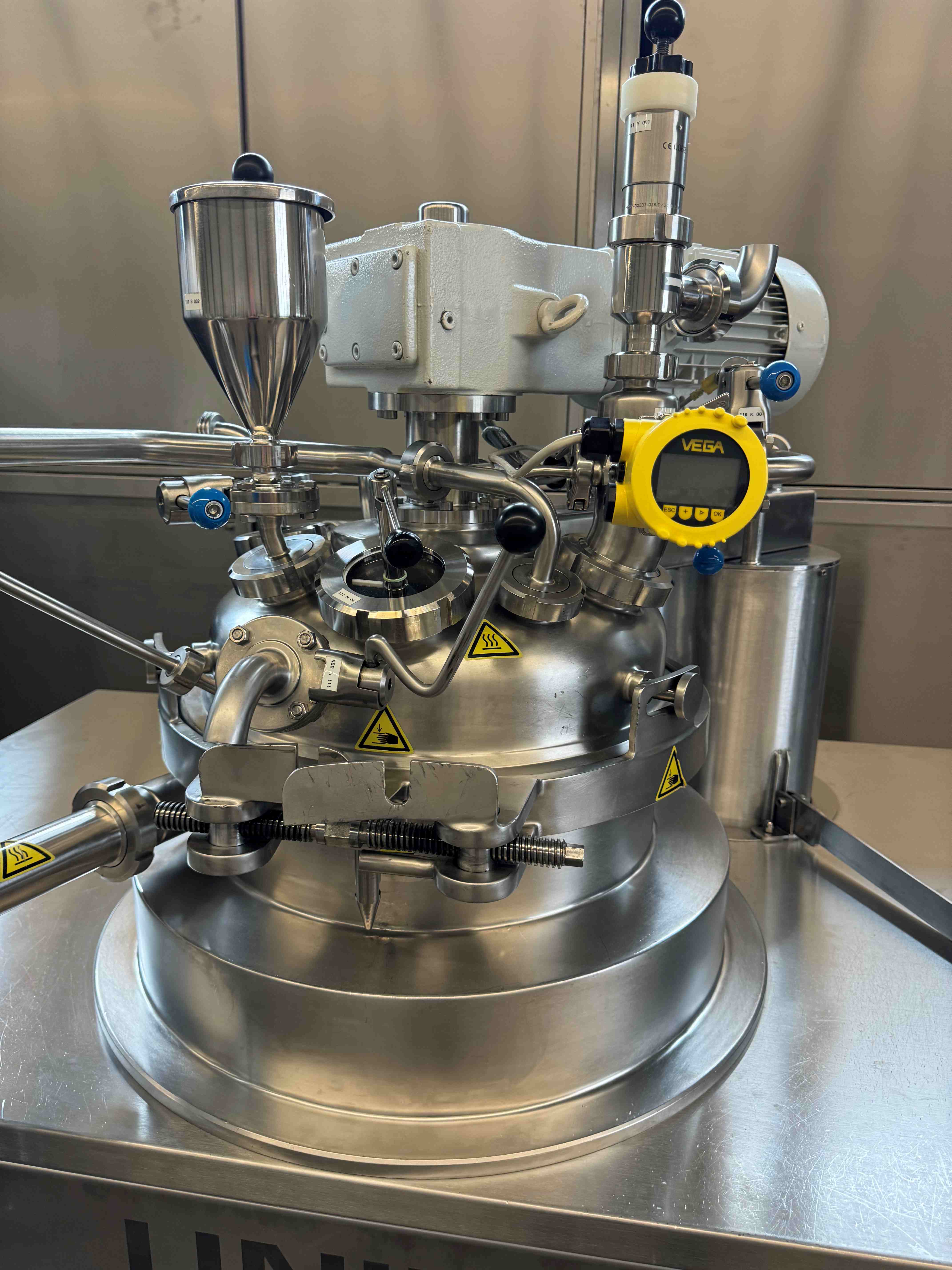

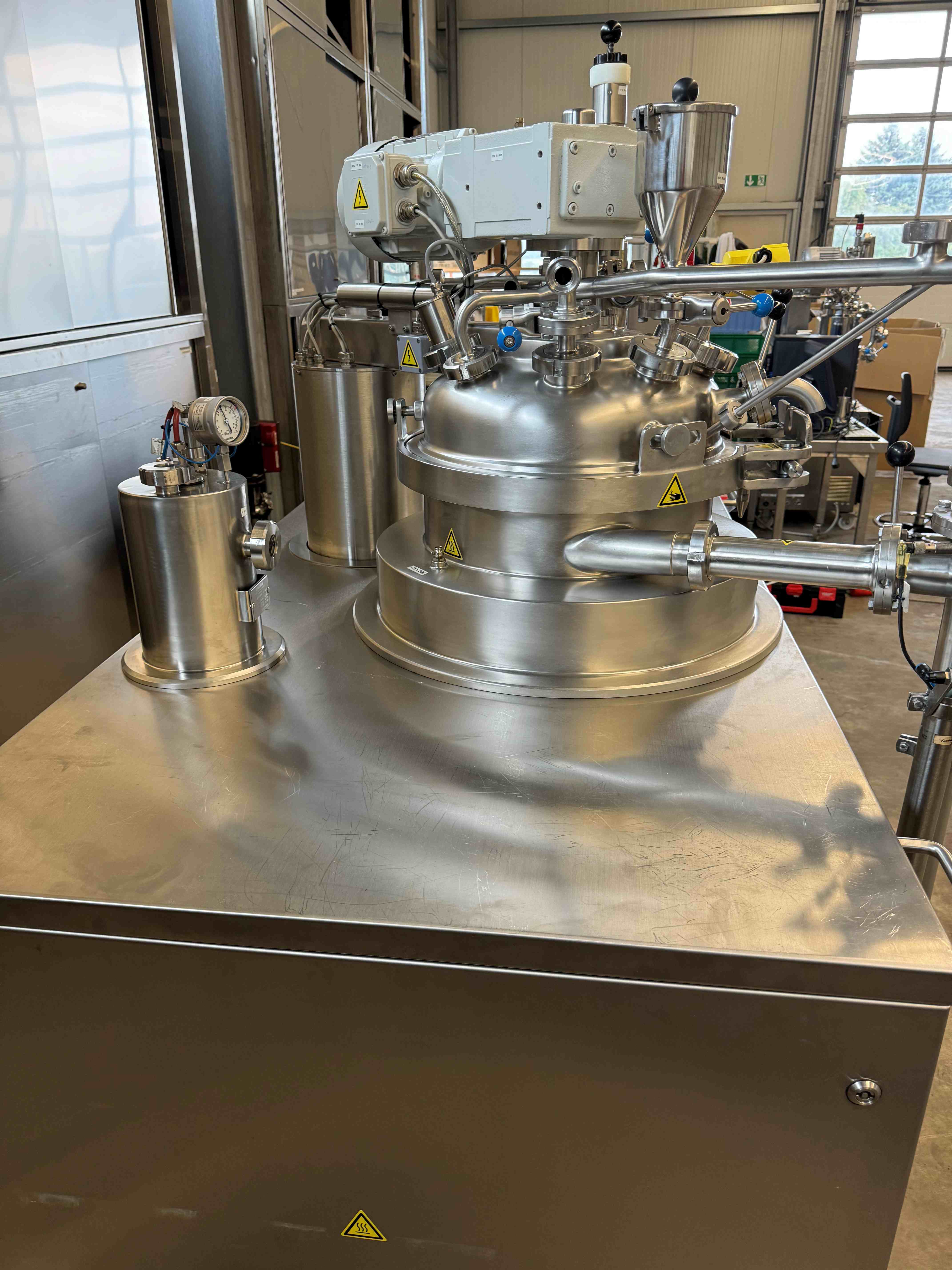

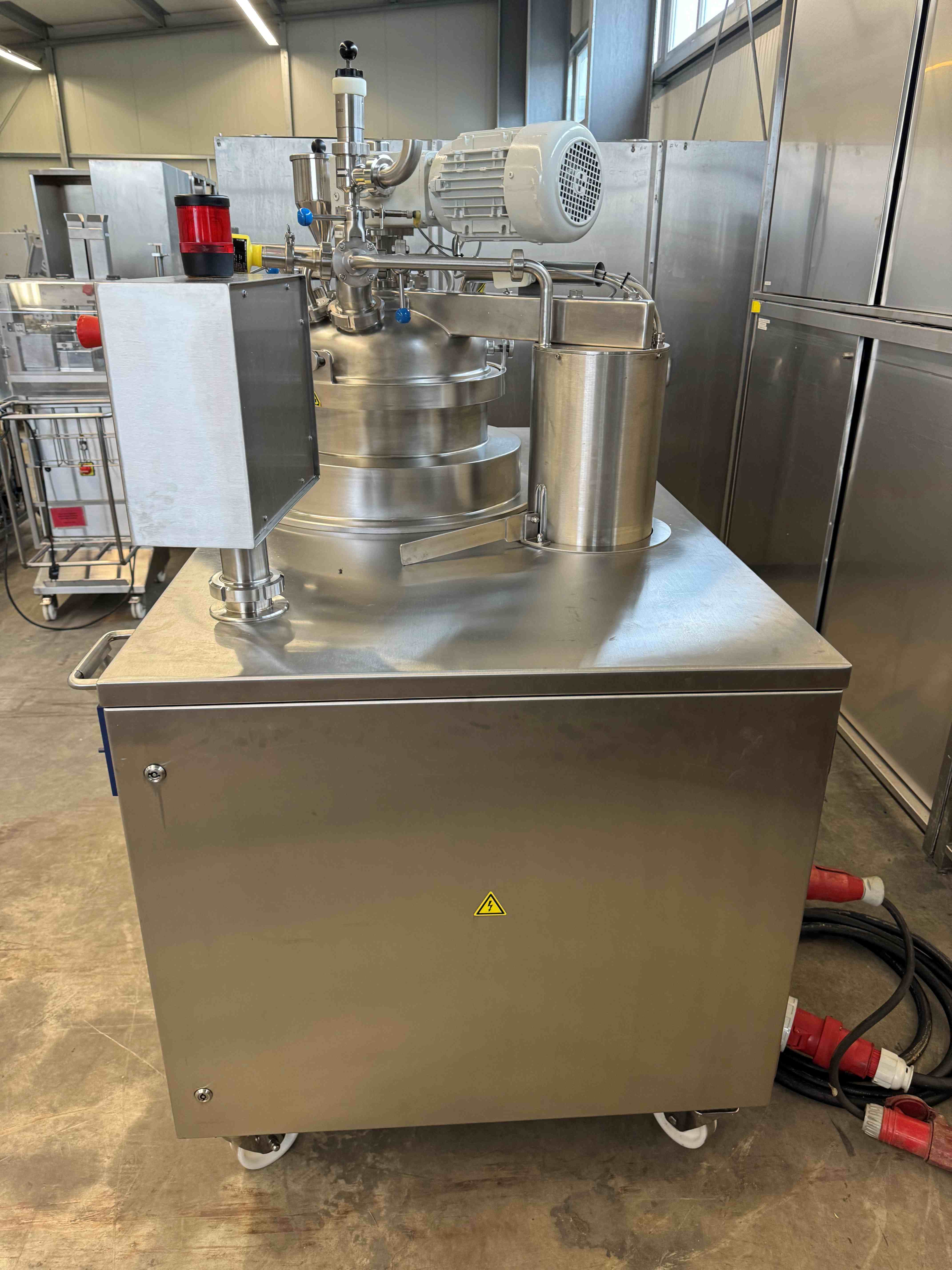

Machines
Vacuum process plant
Item No.:2357

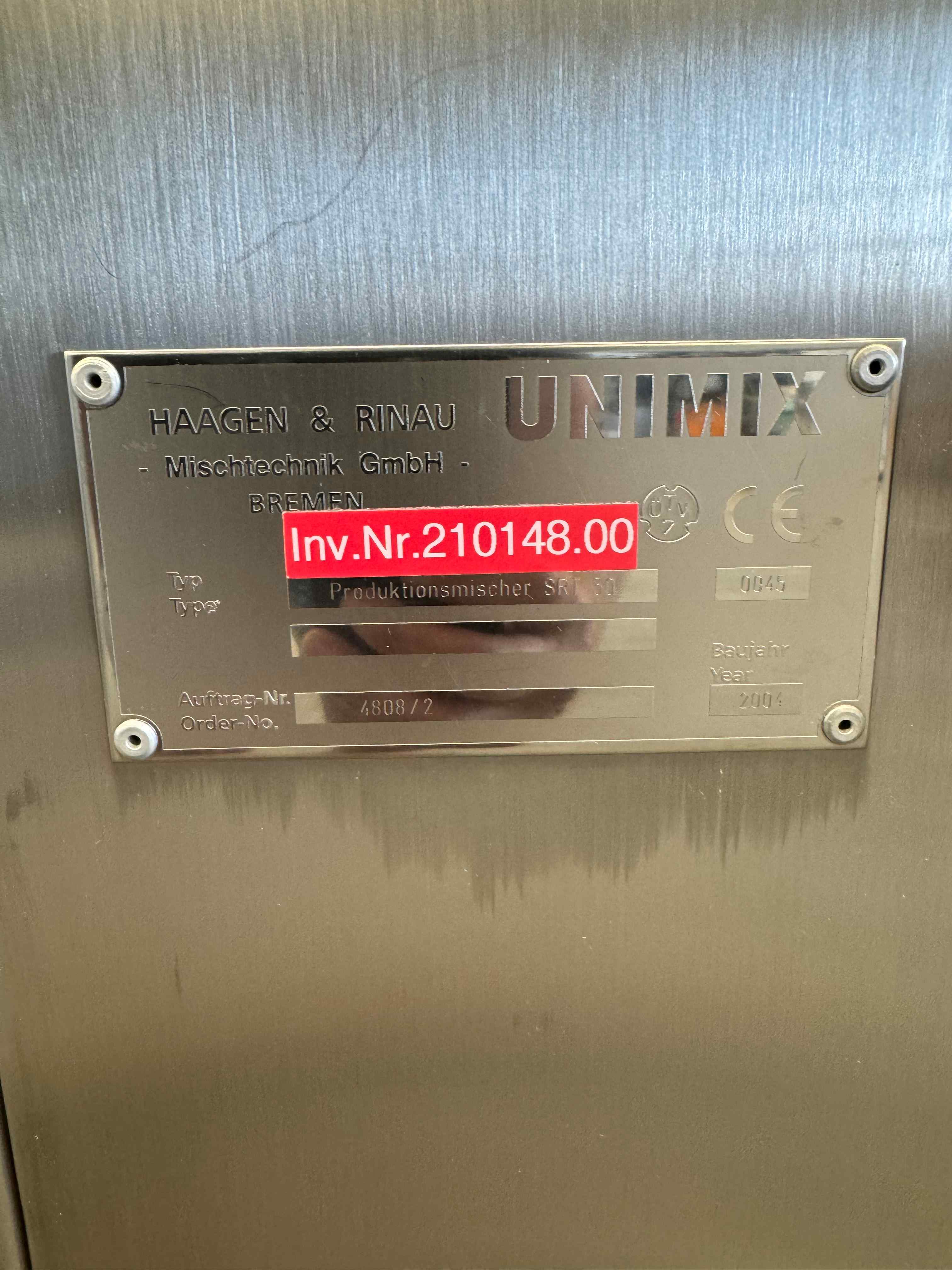

Manufacturer:EKATO Unimix
Type:SRT 50
Year:2004
Serial Number:70888
Location:89547 Gerstetten
Additional Information
Other Information:Product description
- GMP-compliant

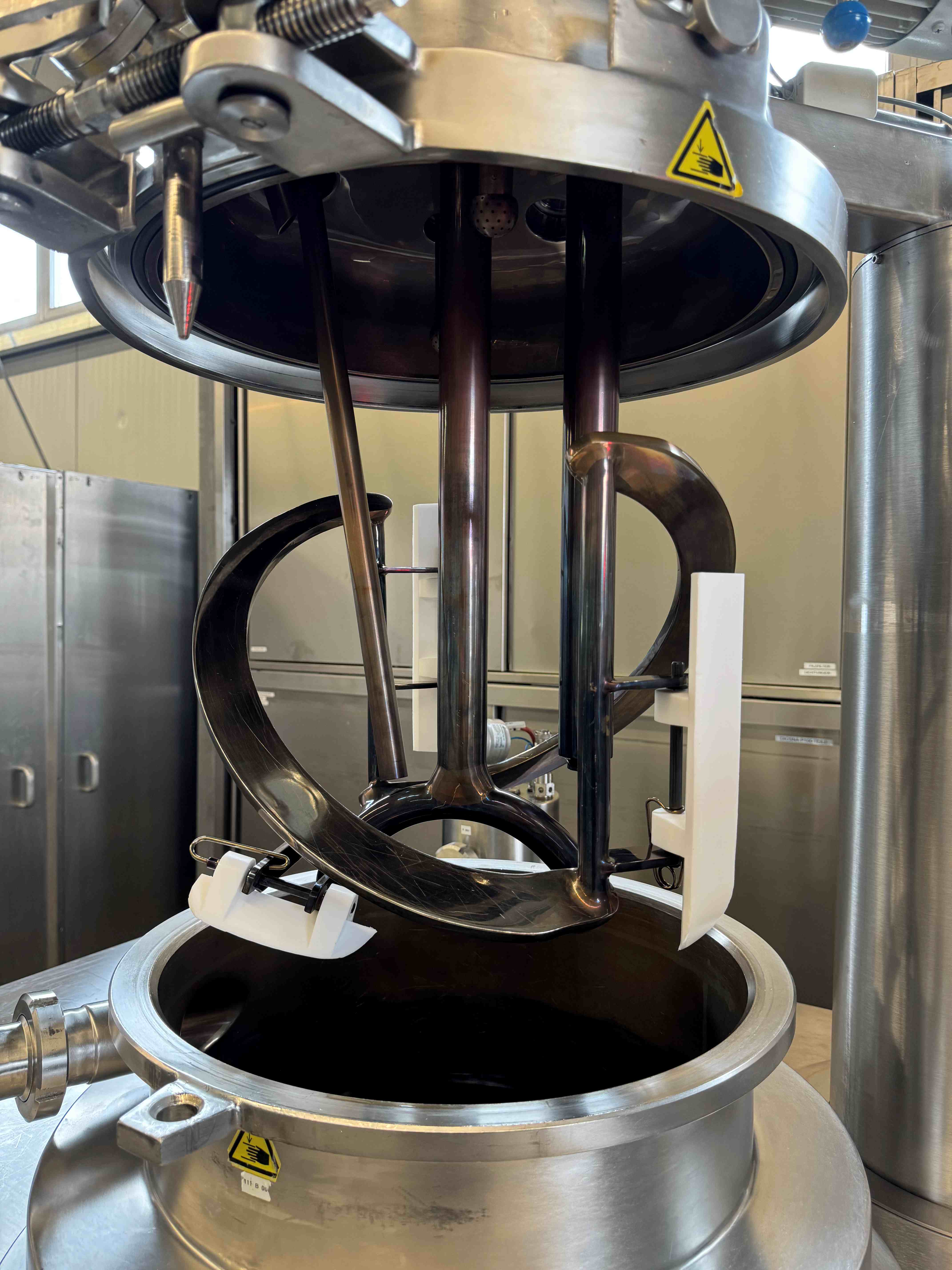

- EKATO PARAVISC agitator with EKATO UNIMIX scraper system
Power 3 Kw, 5.2 Kw at 87 Hz
Speed 21-121 rpm

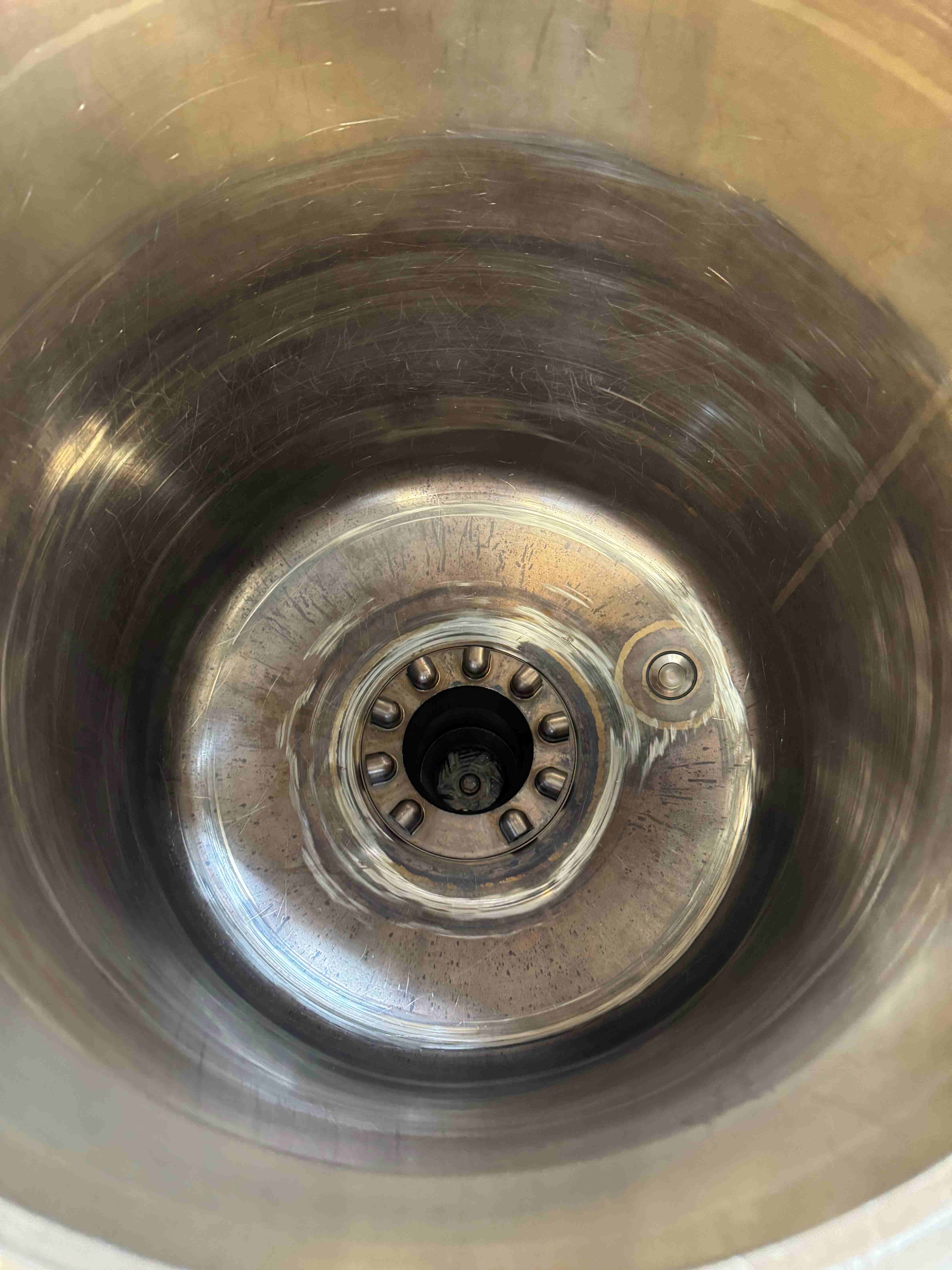

- Patented EKATO UNIMIX S-JET homogeniser, positioned at the lowest point of the tank, for internal and external homogenisation
Power 5.5 kW, 9.5 Kw at 87 Hz
Speed 1,000 - 4,800 rpm

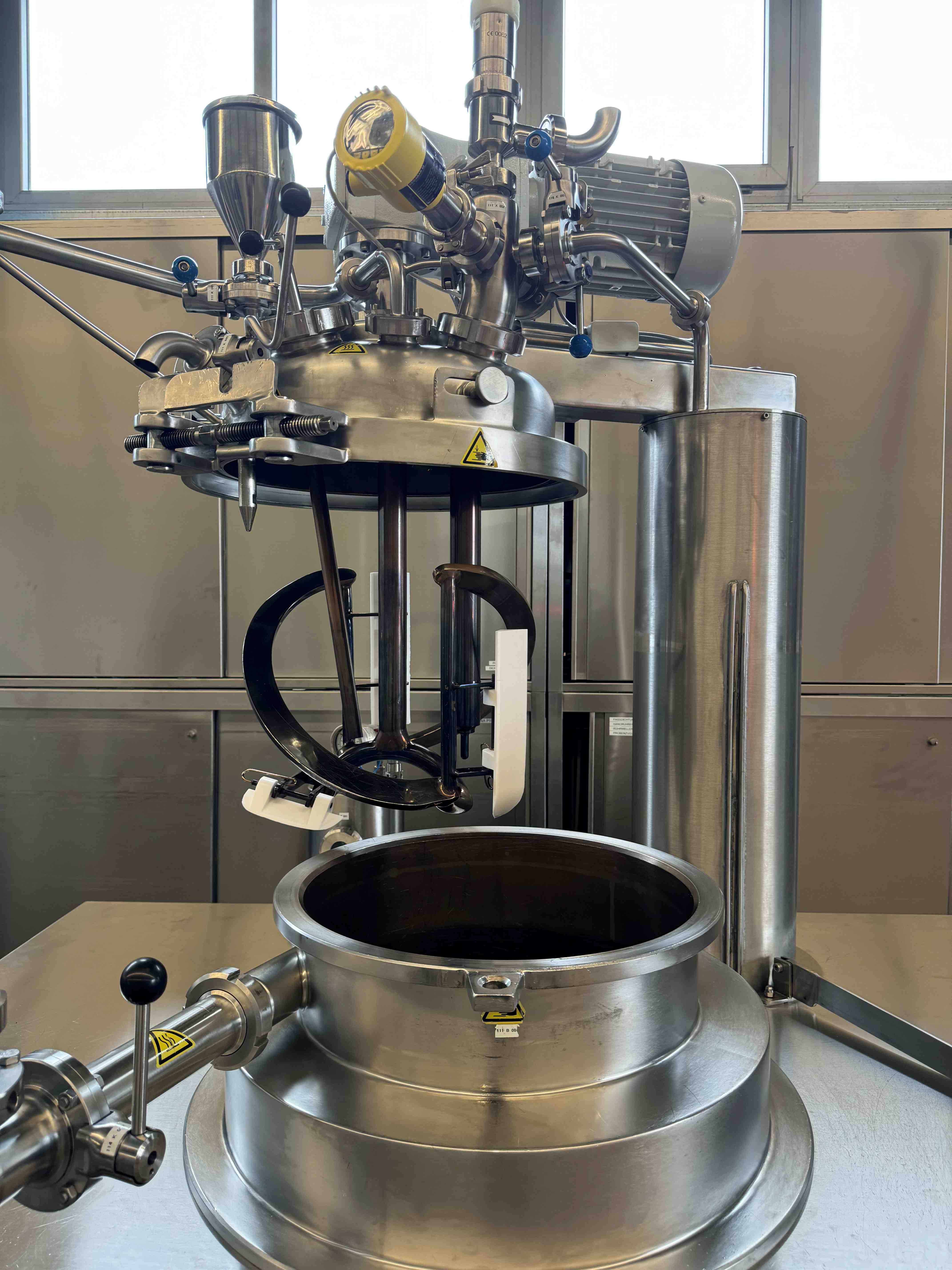

- Swivelling lid lifting device

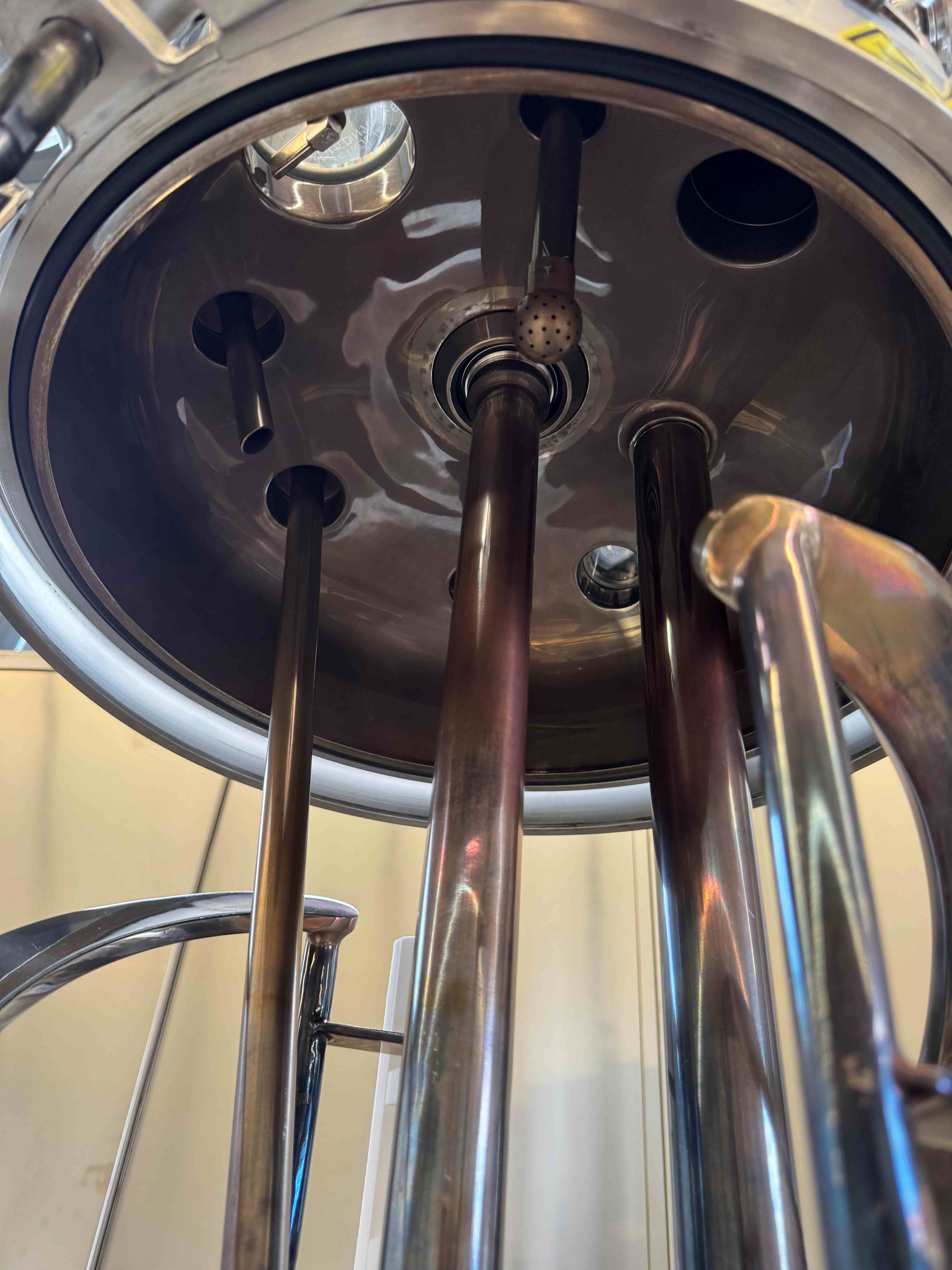

- Integrated CIP cleaning system
- Integrated heating/cooling system
Electric heating 12 Kw

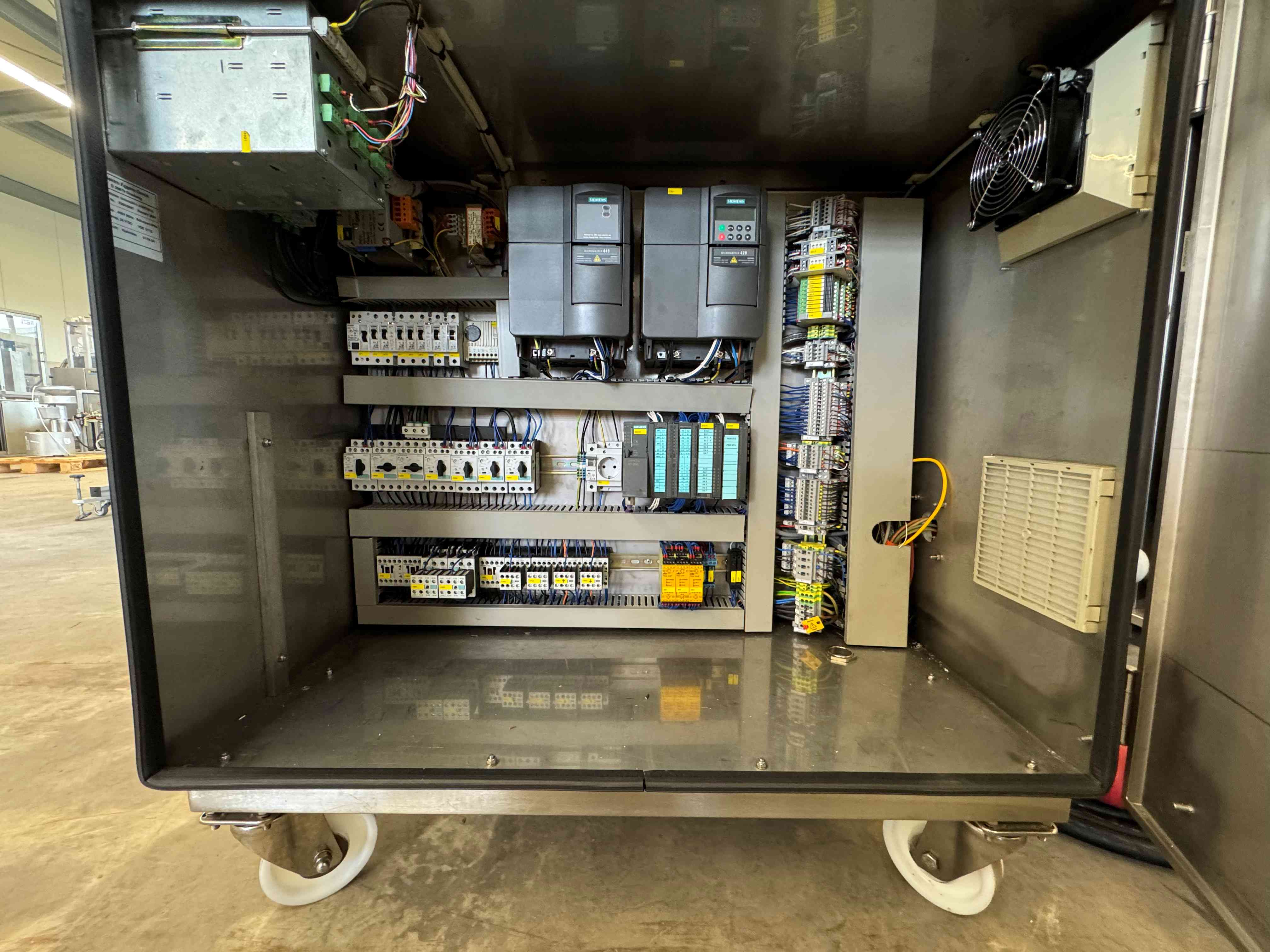

Siemens S7 control system with OP 17
Pressure and vacuum-proof with integrated vacuum system
Product chamber:
Capacity 85 litres / 50 l usable volume,
Pressure -1/2 bar,
Temperature 10/152 °C,
Thermal system / double jacket:
Capacity 11 l
Pressure -1/+4 bar,
Temperature 10/152 °C,
Complete documentation including IQ / OQ

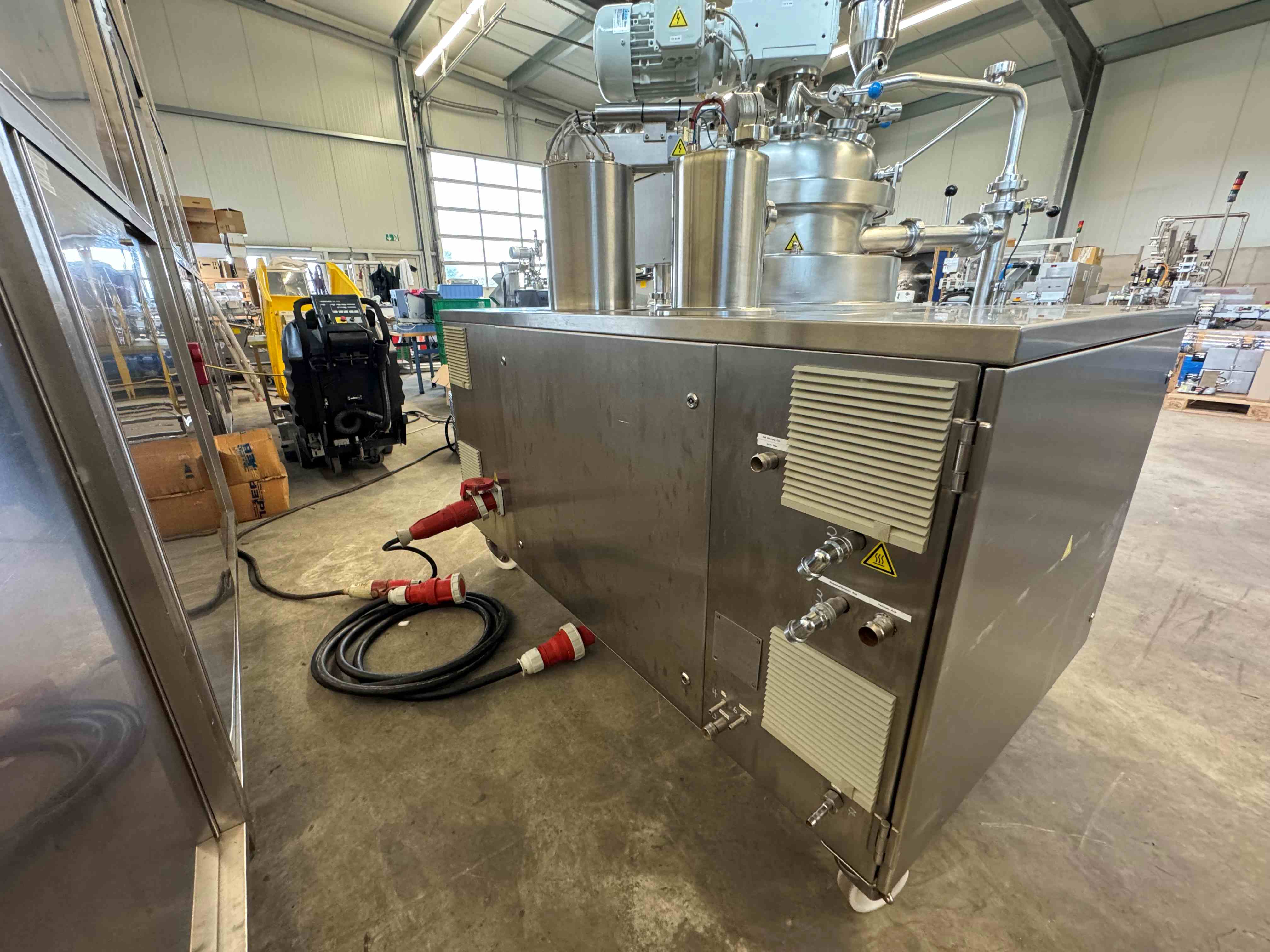

Machine is mobile, weight approx. 1,400 kg
Previous use: Homeopathic medicines
