UV disinfection system
Item No.:2133
Manufacturer:WEDECO
Type:ME 450
Location:Dettingen (89547)
Additional Information

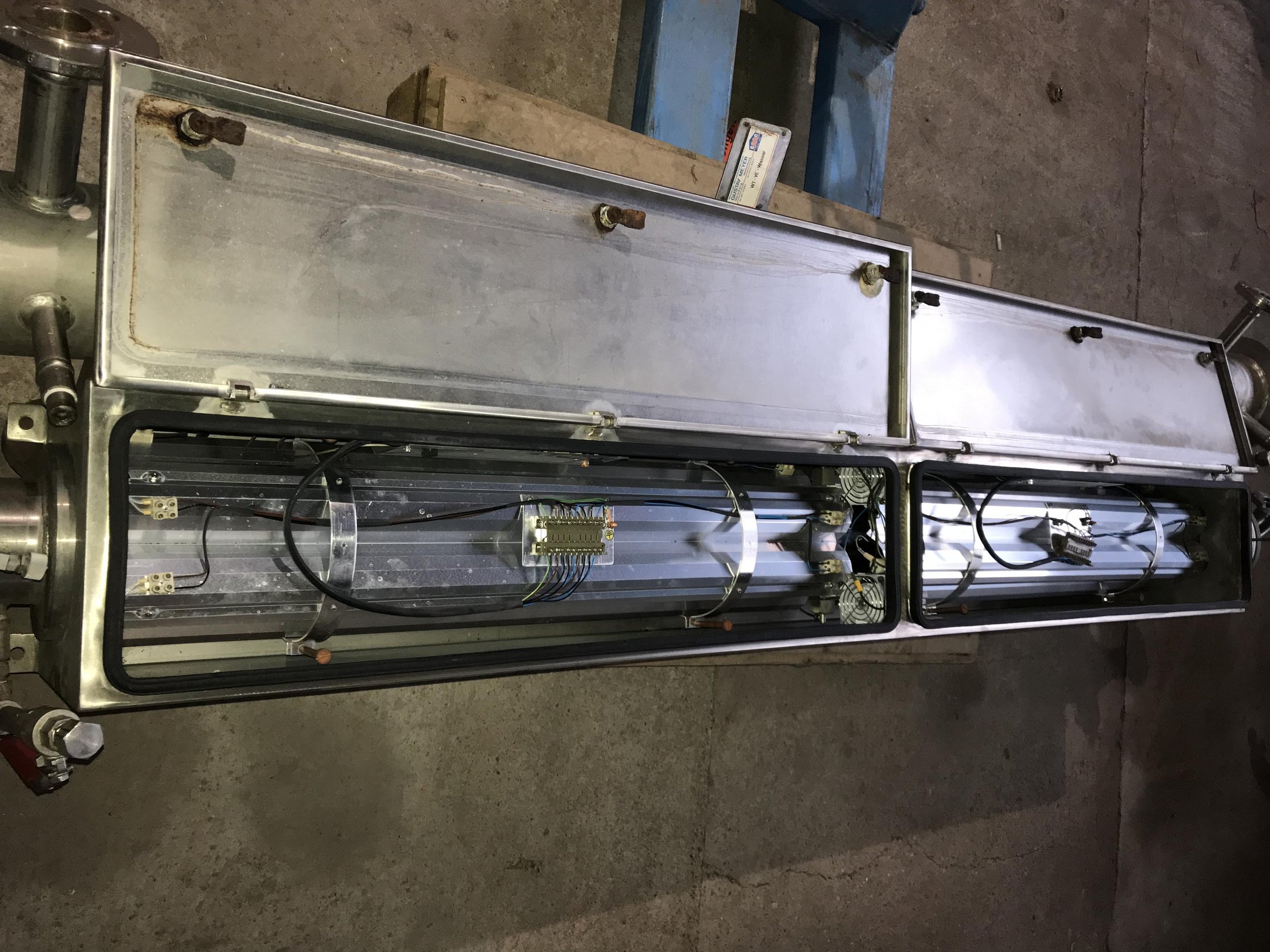

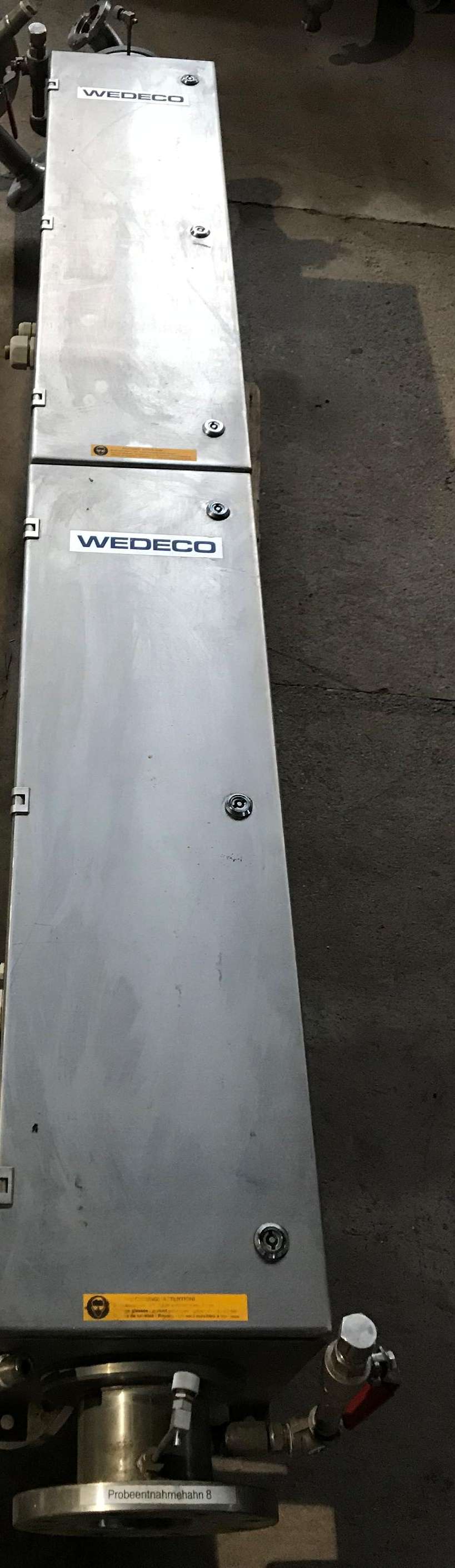

Other Information:UV- Reactor, housing stainless steel material 1.4301
Material Reactor chamber: pure quartz
Volume 25.0 l
Flange connection DN 100, 1.4571, DIN 2576
Empty weight approx. 140 kg, dimensions: 380 mm width x 2215 mm high x 415 mm depth
Water temperature 5 °C – 60 °C, operating pressure 10 bar, pressure loss approx. 0.01 bar
Protection class IP 65

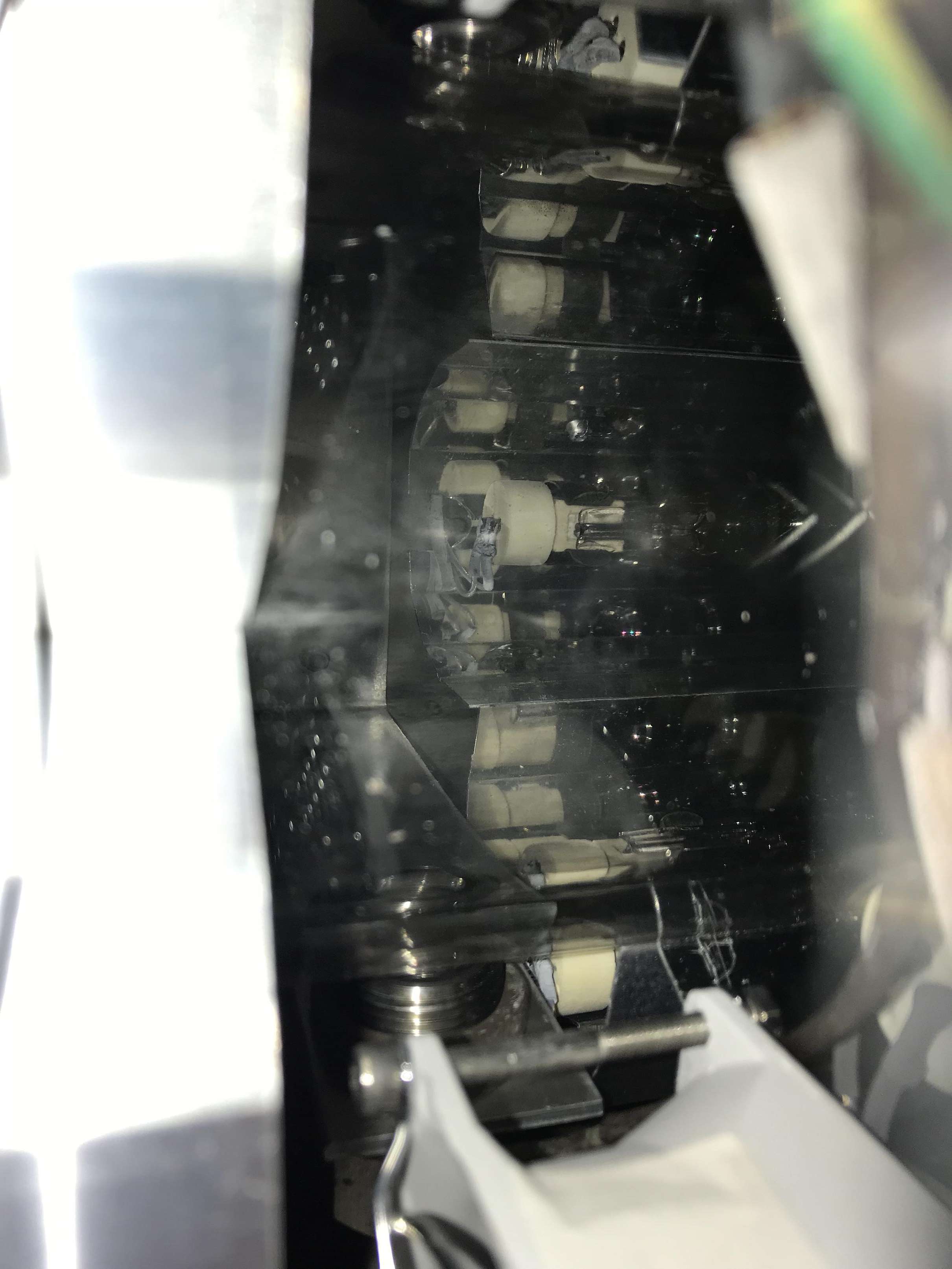

UV spotlight
Hg-low pressure spectrothermal radiator
Power 160 Watt, Number 10
UV sensor
Accuracy +- 10%

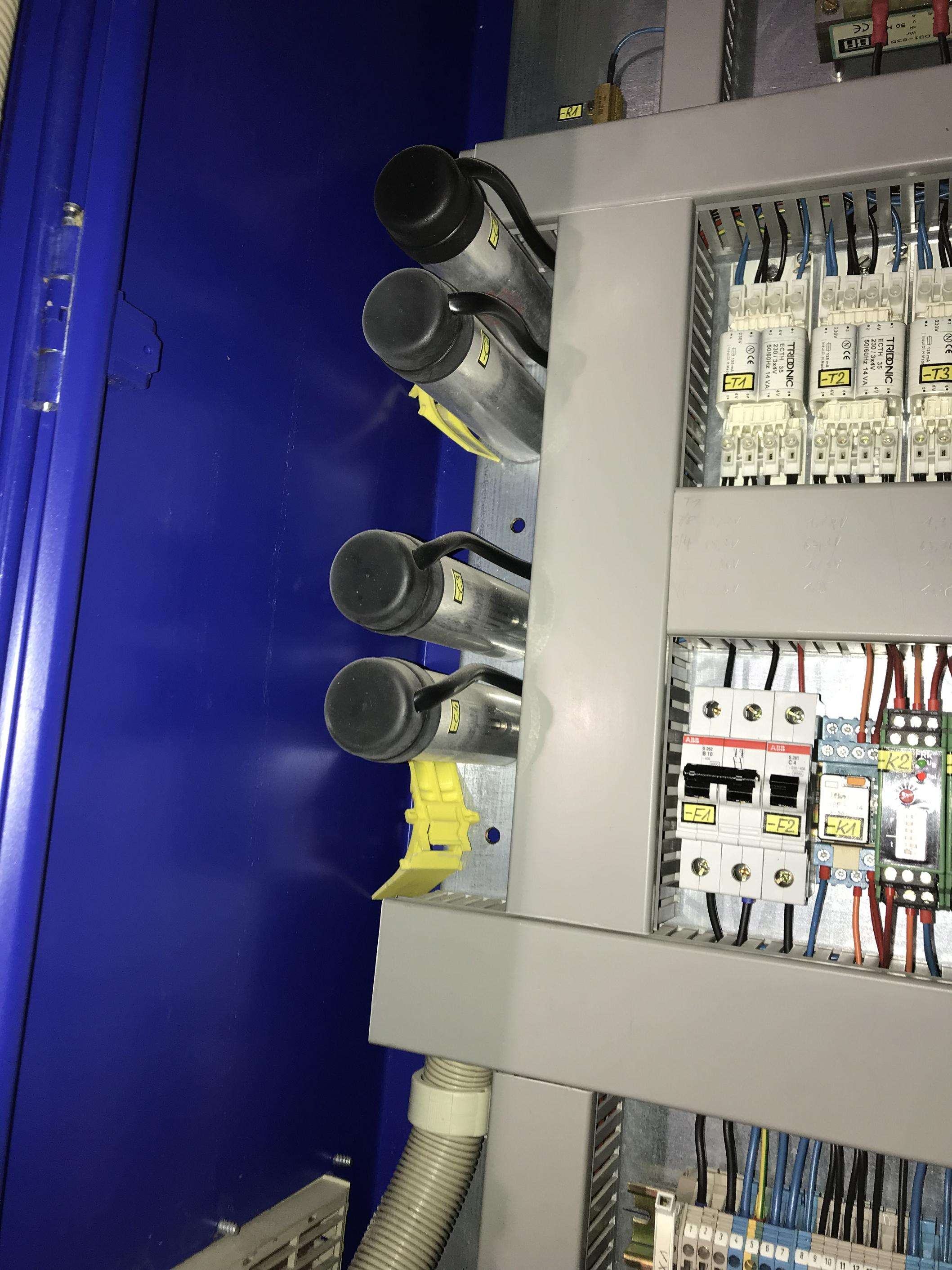

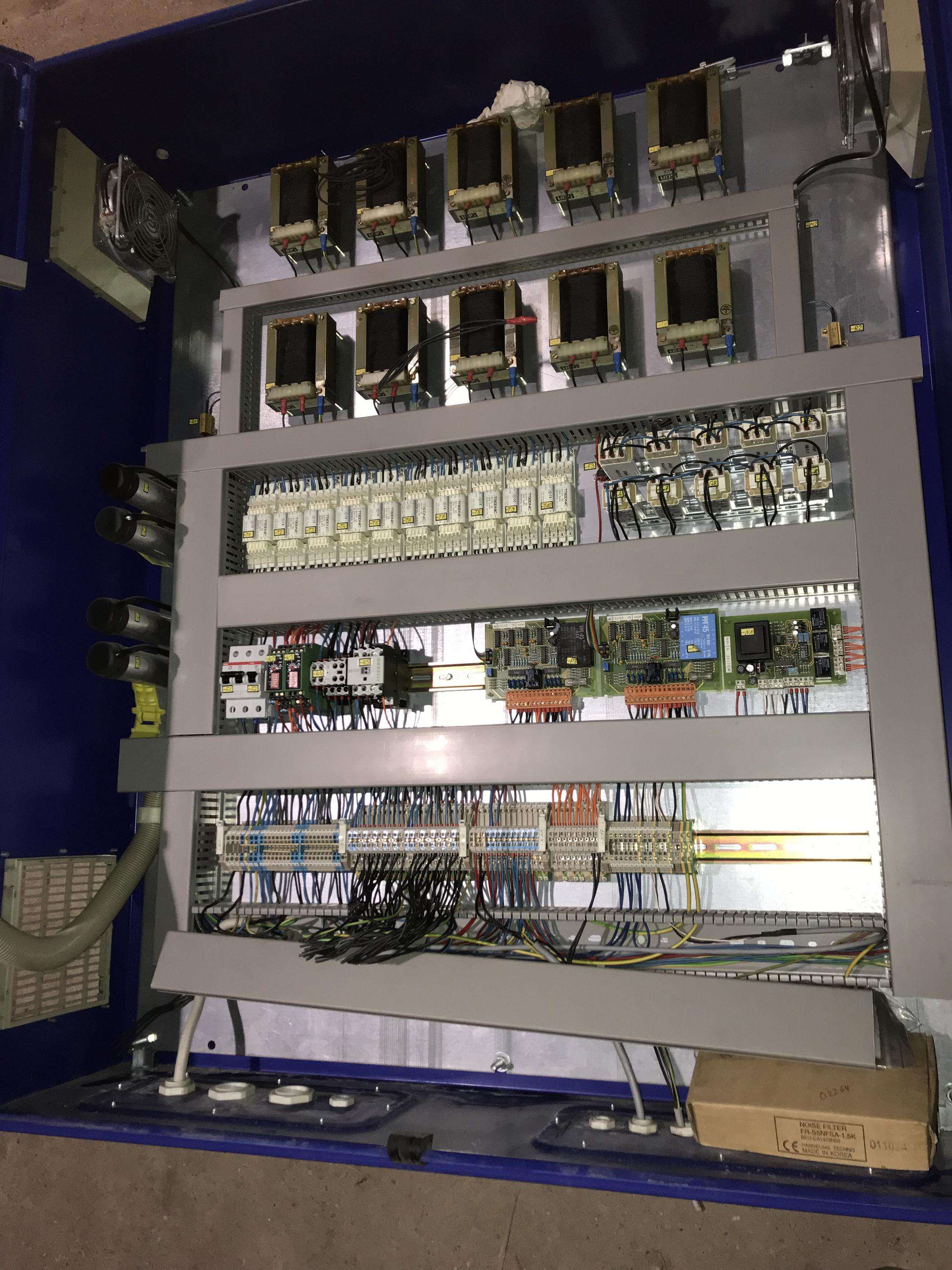

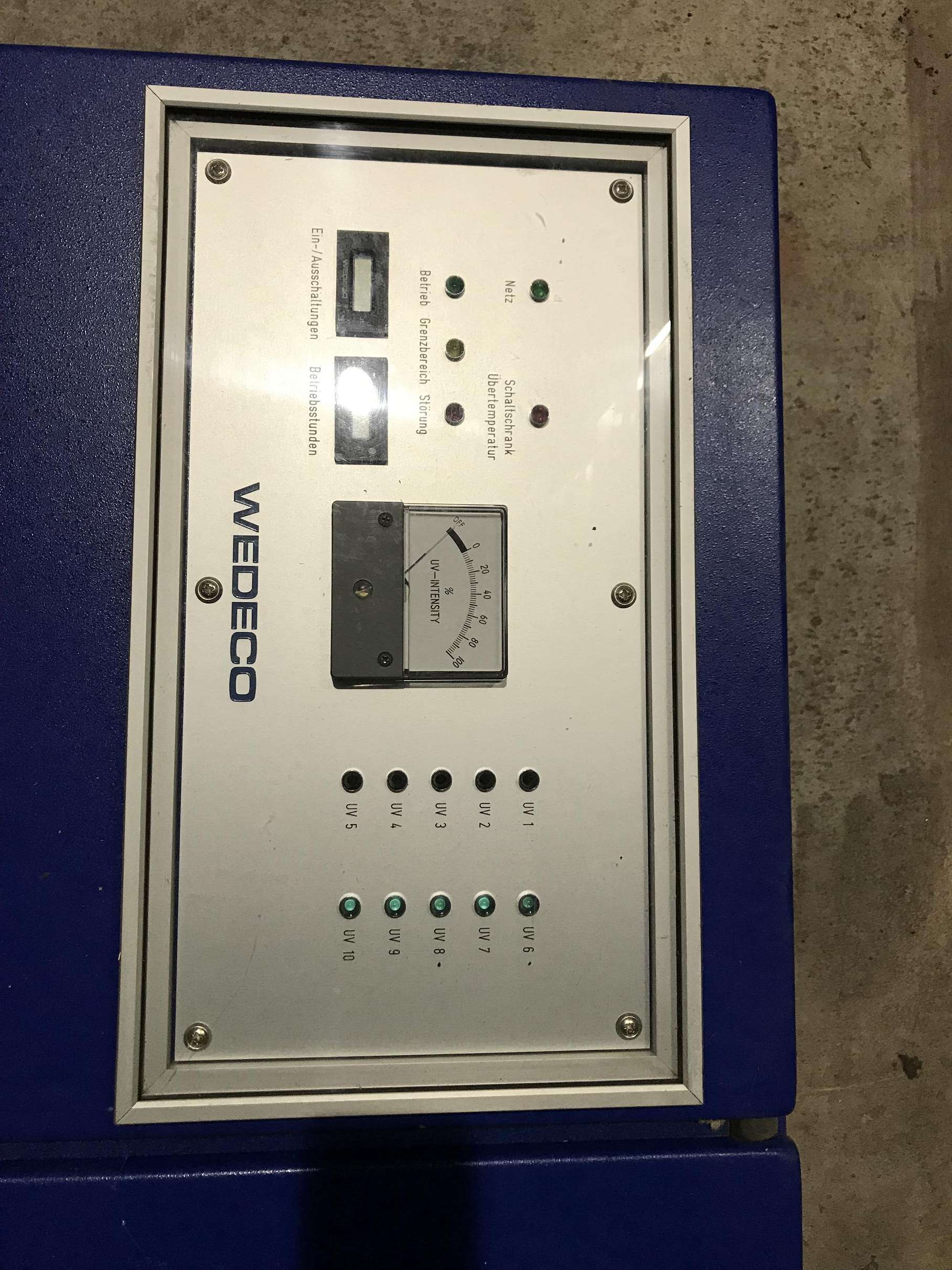

Control cabinet
