Machines

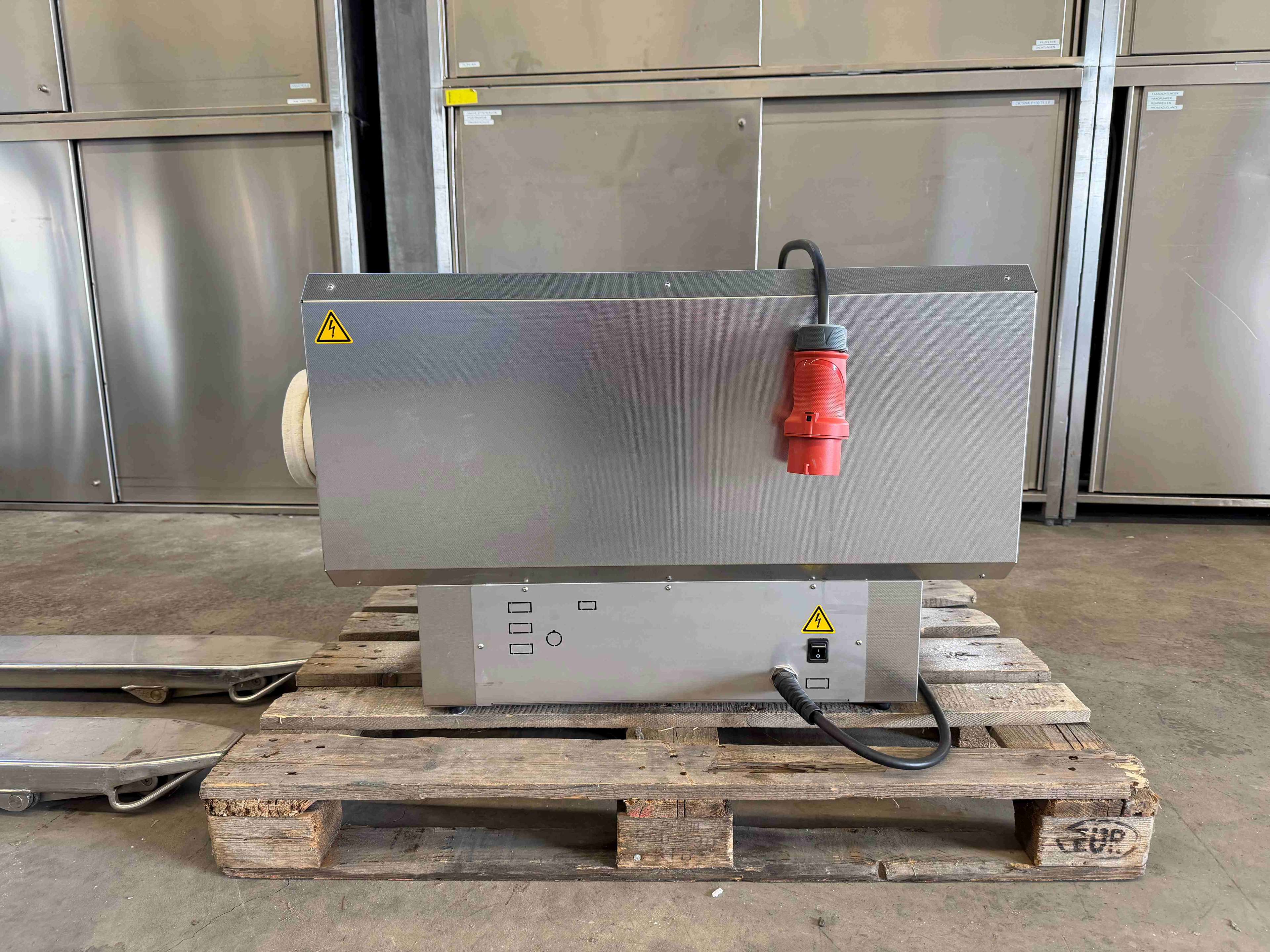

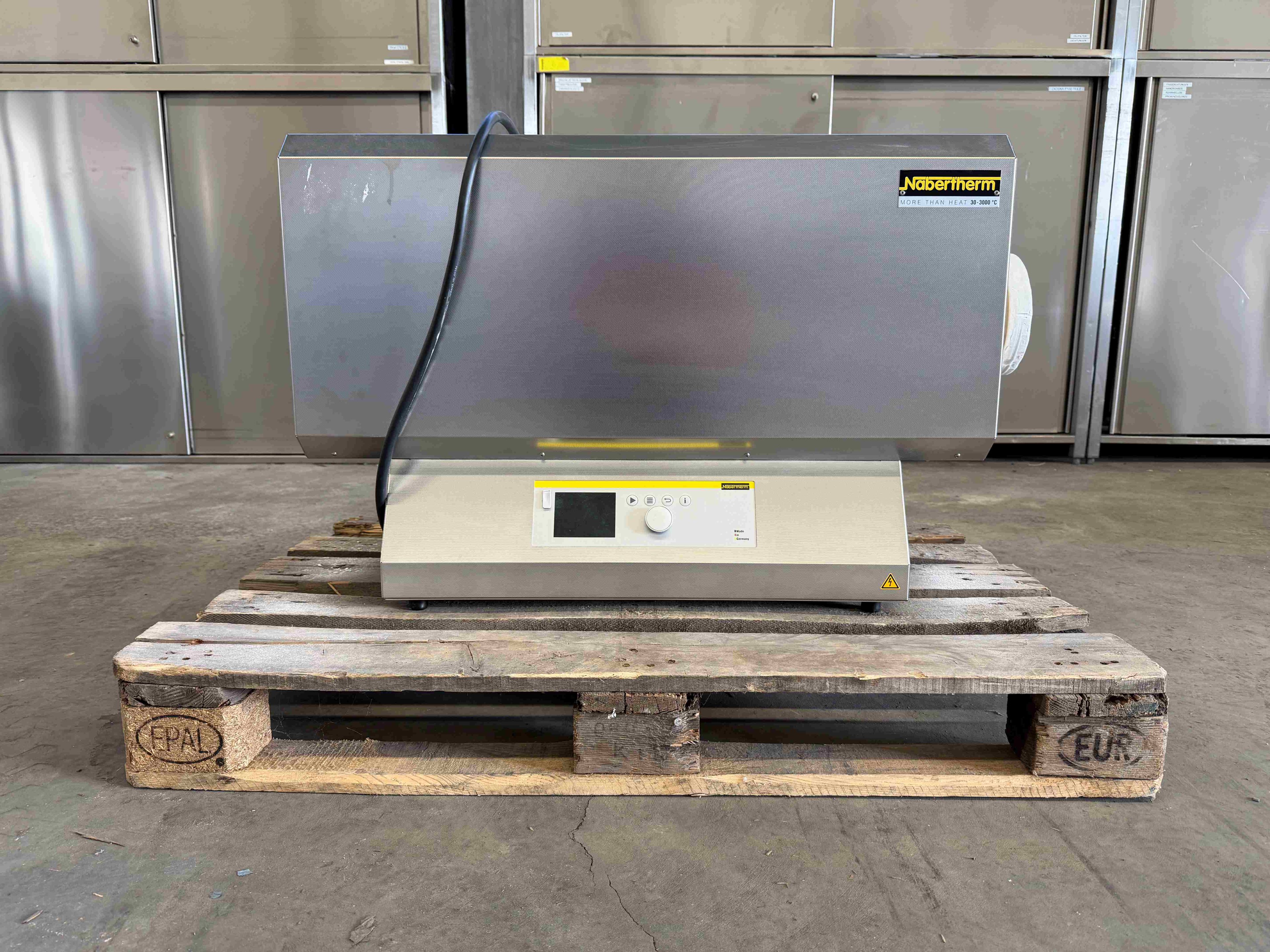

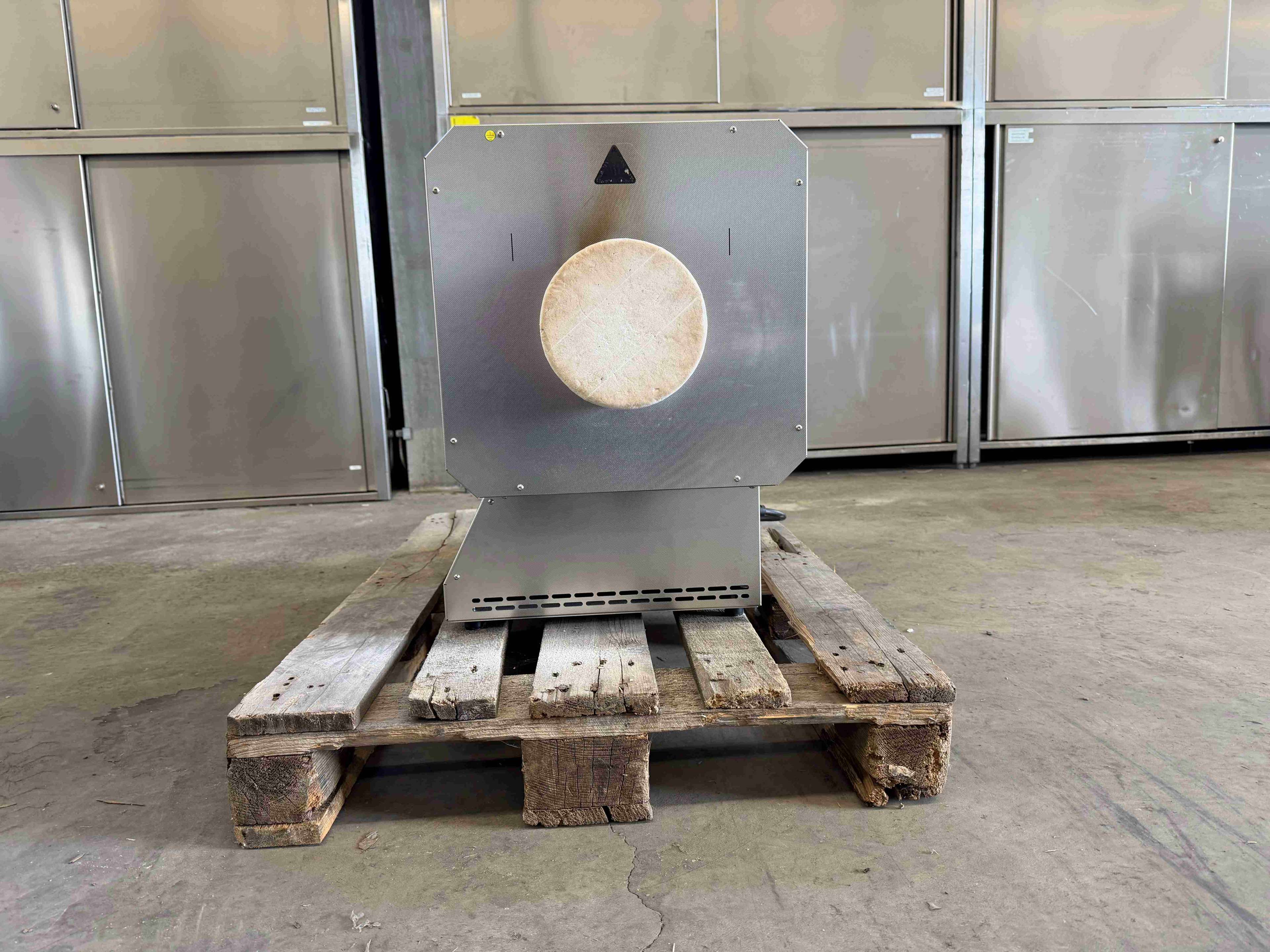

Tube furnace
Item No.:2388
Manufacturer:Nabertherm
Type:R170/750/12
Location:89547 Gerstetten
Additional Information
Other Information:These compact tube furnaces with integrated controls can be used for a wide range of processes. Equipped with a standard working tube made of C 530 ceramic and two fibre plugs, these tube furnaces offer unbeatable value for money.
• Tmax 1200 °C
• Single-zone design as standard
• Double casing made of textured stainless steel sheets
• Only fibre materials that are not classified as carcinogenic according to TRGS 905, Class 1 or 2, are used
• Outer tube diameter 170 mm, heated length 750 mm

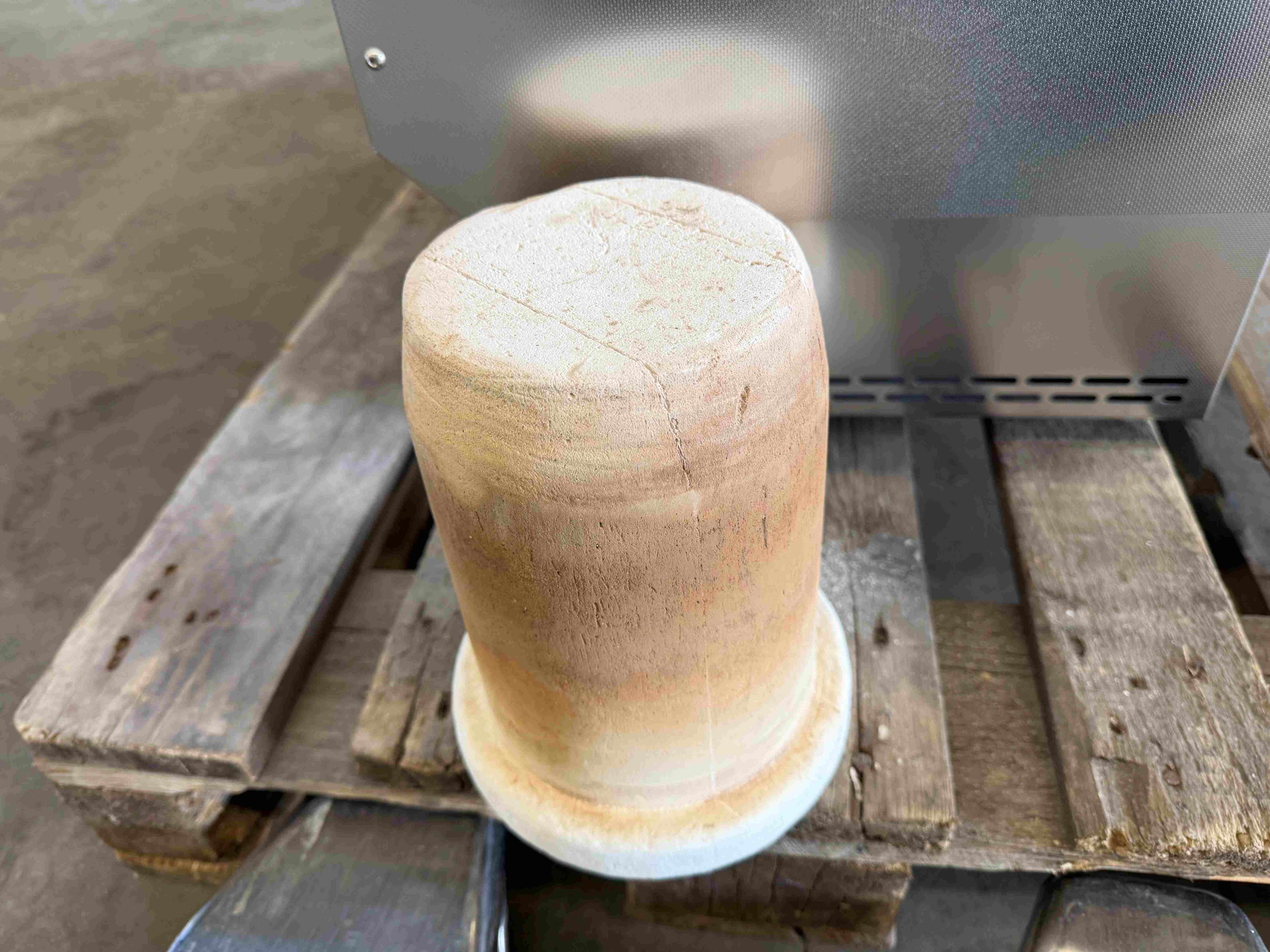

• Working tube made of C 530 ceramic with two fibre plugs as standard equipment
• Tmax 1200 °C: Type N thermocouple
•

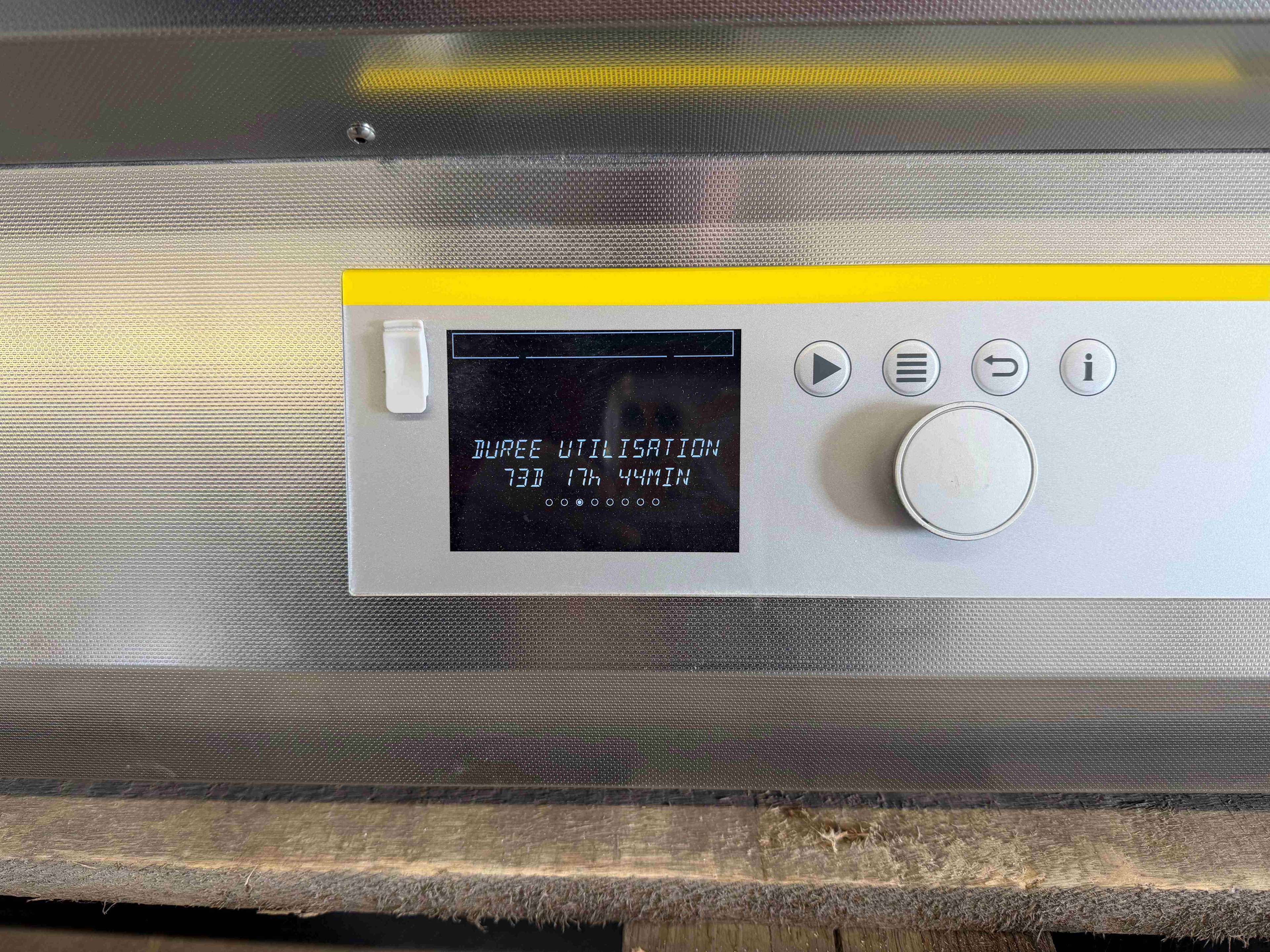

• Solid-state relays ensure quiet operation
• Intended use within the limitations specified in the operating instructions
• NTLog Basic for Nabertherm controllers: recording of process data via USB flash drive
