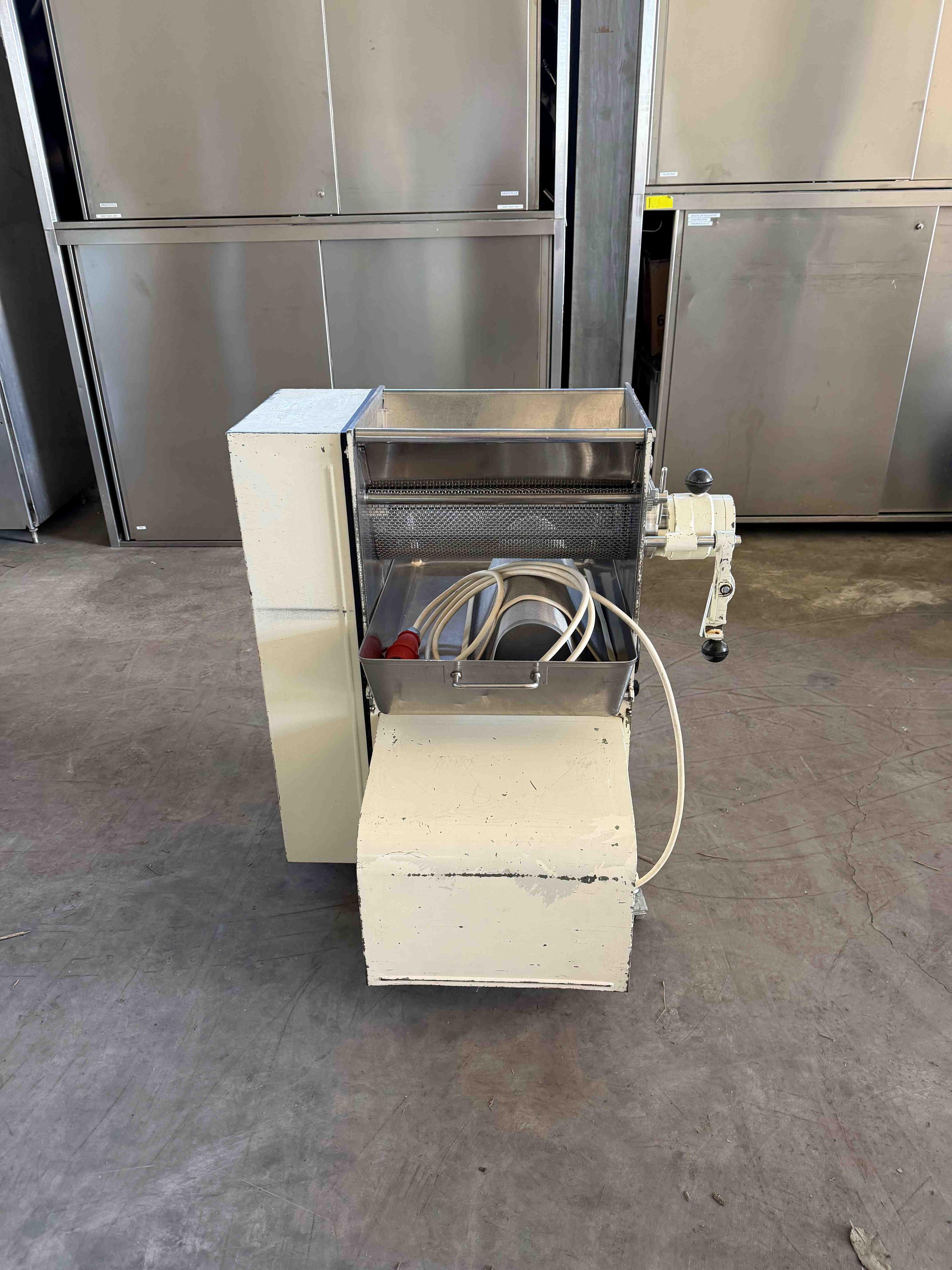

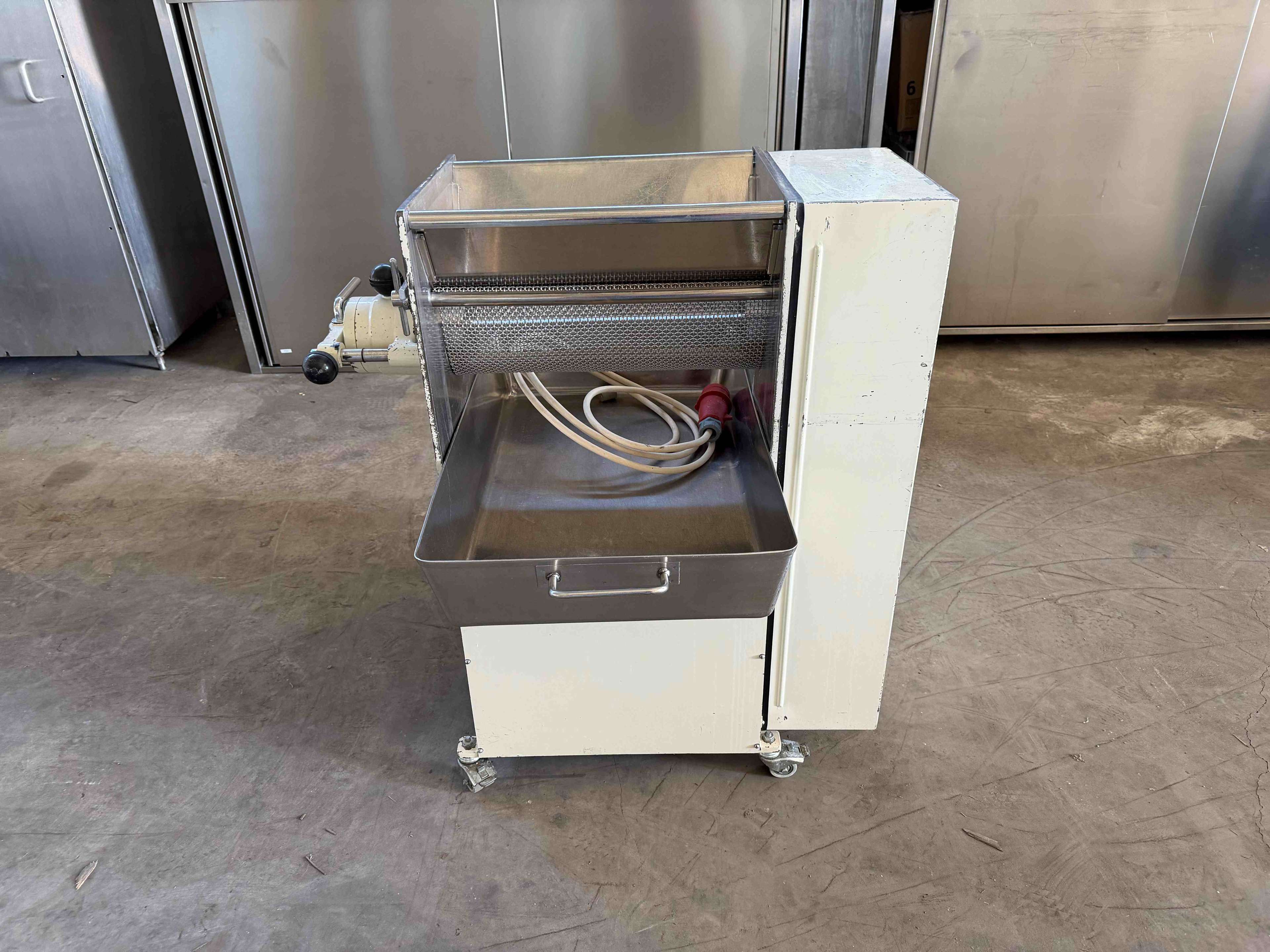

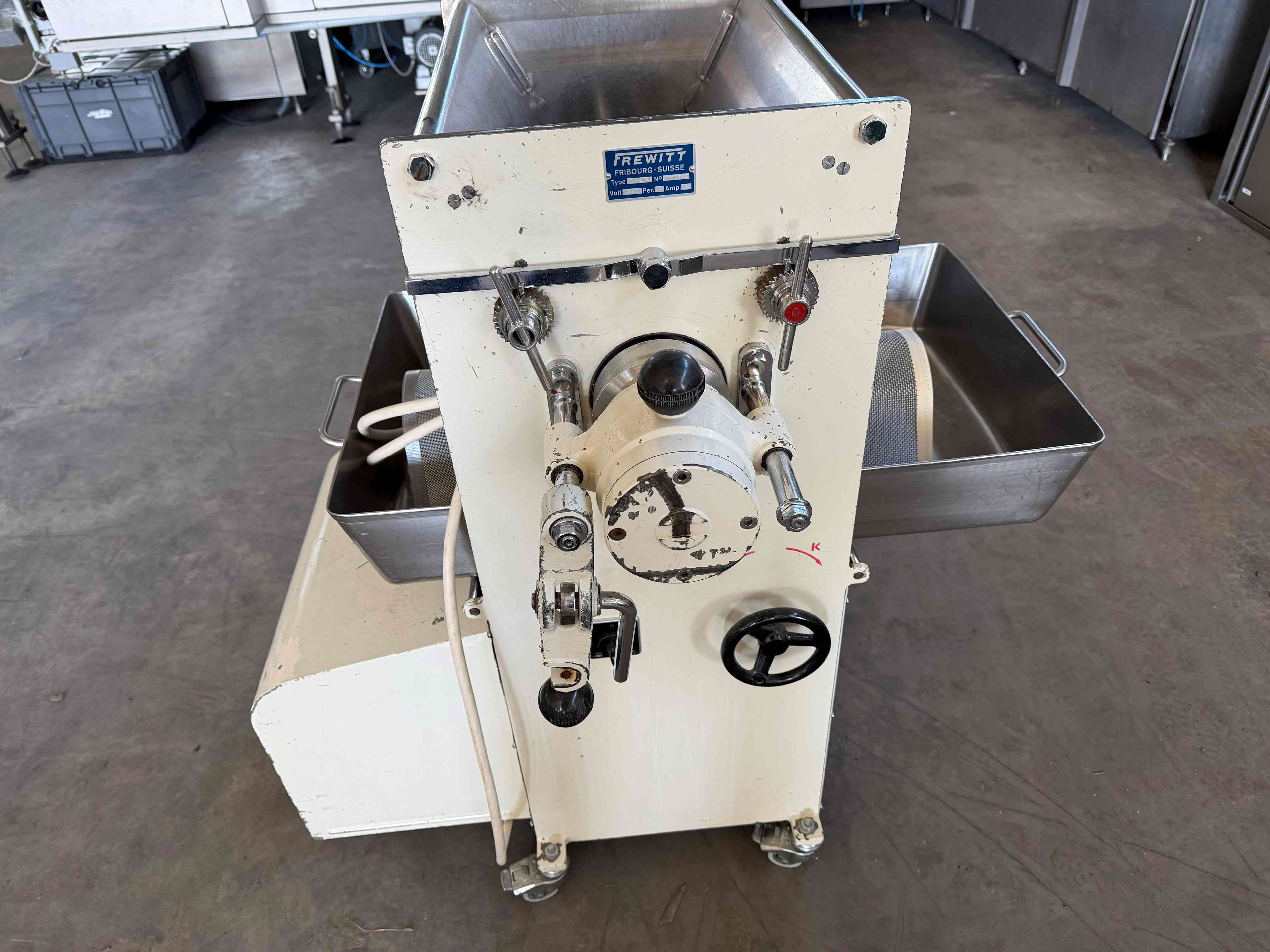

Pelletising machine
Item No.:2394
Manufacturer:Frewitt
Type:MG 203
Serial Number:037/933
Location:89547 Gerstetten
Additional Information
Other Information:Capacity up to 1,000 kg/hour.

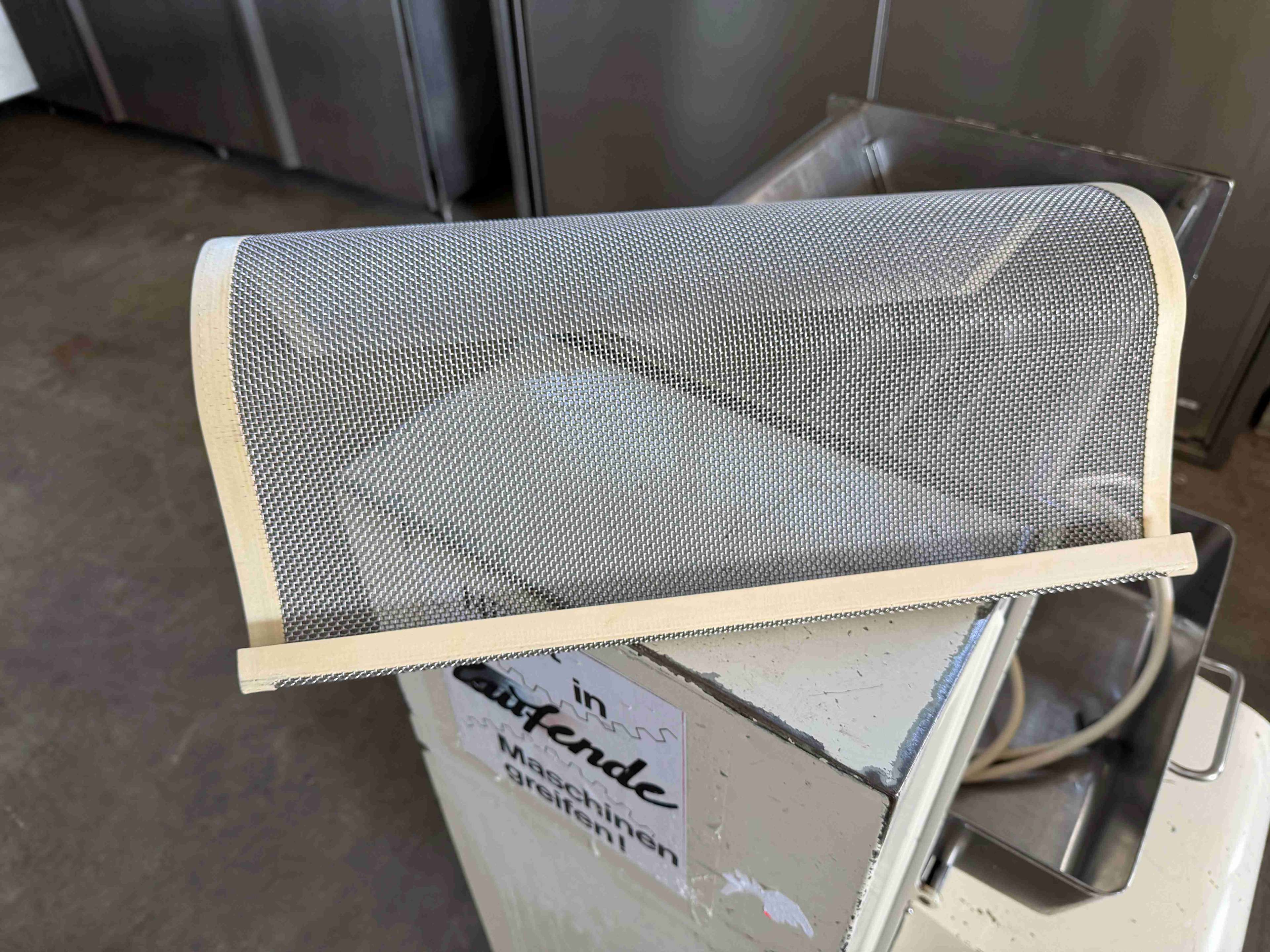

Includes 3 sieve inserts
Machine dimensions:
Height approx. 1,000 mm, length approx. 880 mm, width approx. 710 mm,
Sieve size: 492 mm x 492 mm
Net weight: approx. 200 kg
The granulator is suitable for dry granulation, sieving, crushing, wet granulation and granulation into sausage shapes.
The resulting granules are extremely uniform. The particle size is determined by the use of the appropriate sieves.
Construction:

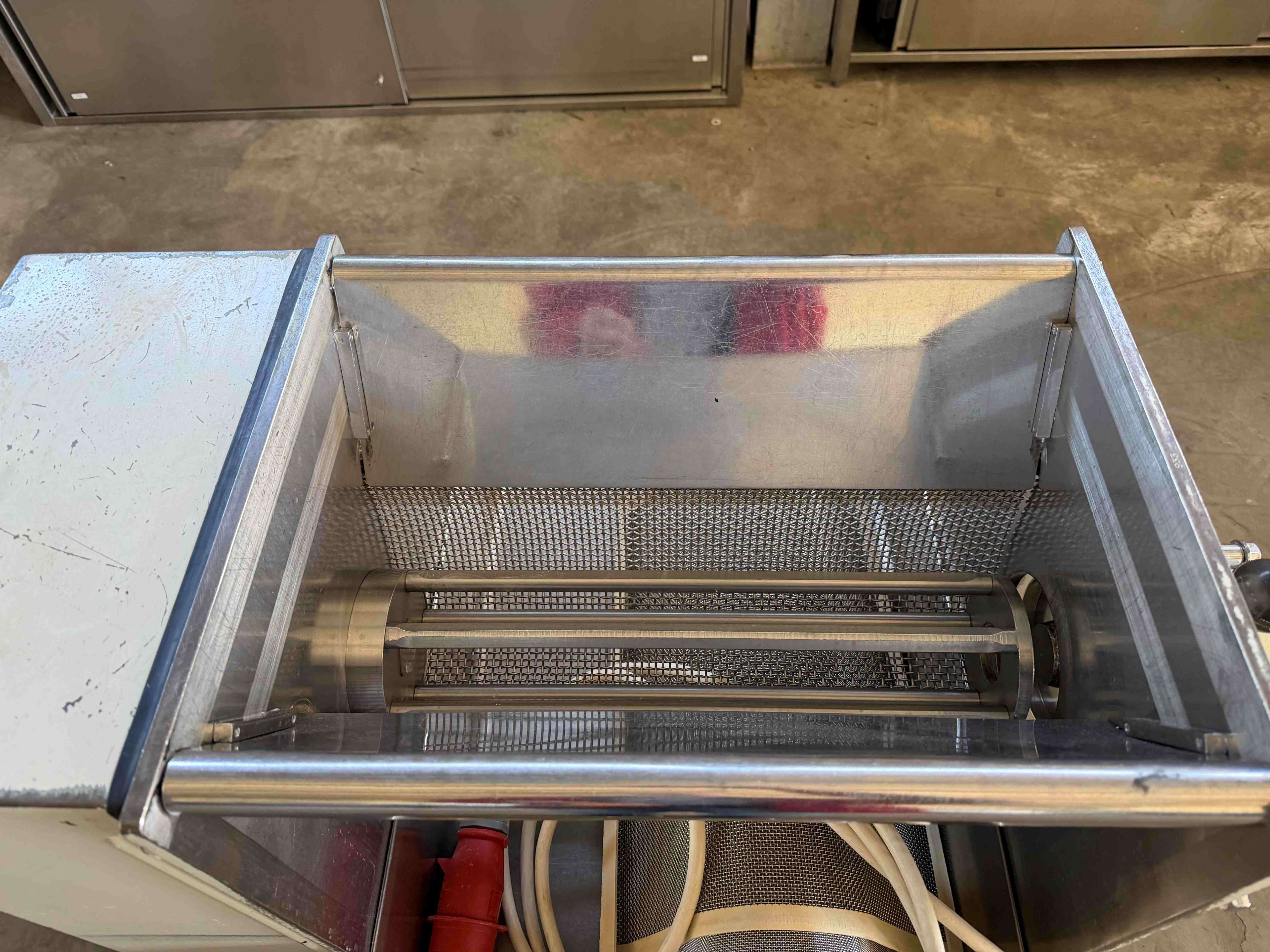

The machine is robustly built. The upper section is lined with stainless steel. The motor and drive are housed in the lower section and protected against dust ingress. The rotor and all parts coming into contact with the material to be granulated are made of stainless steel.

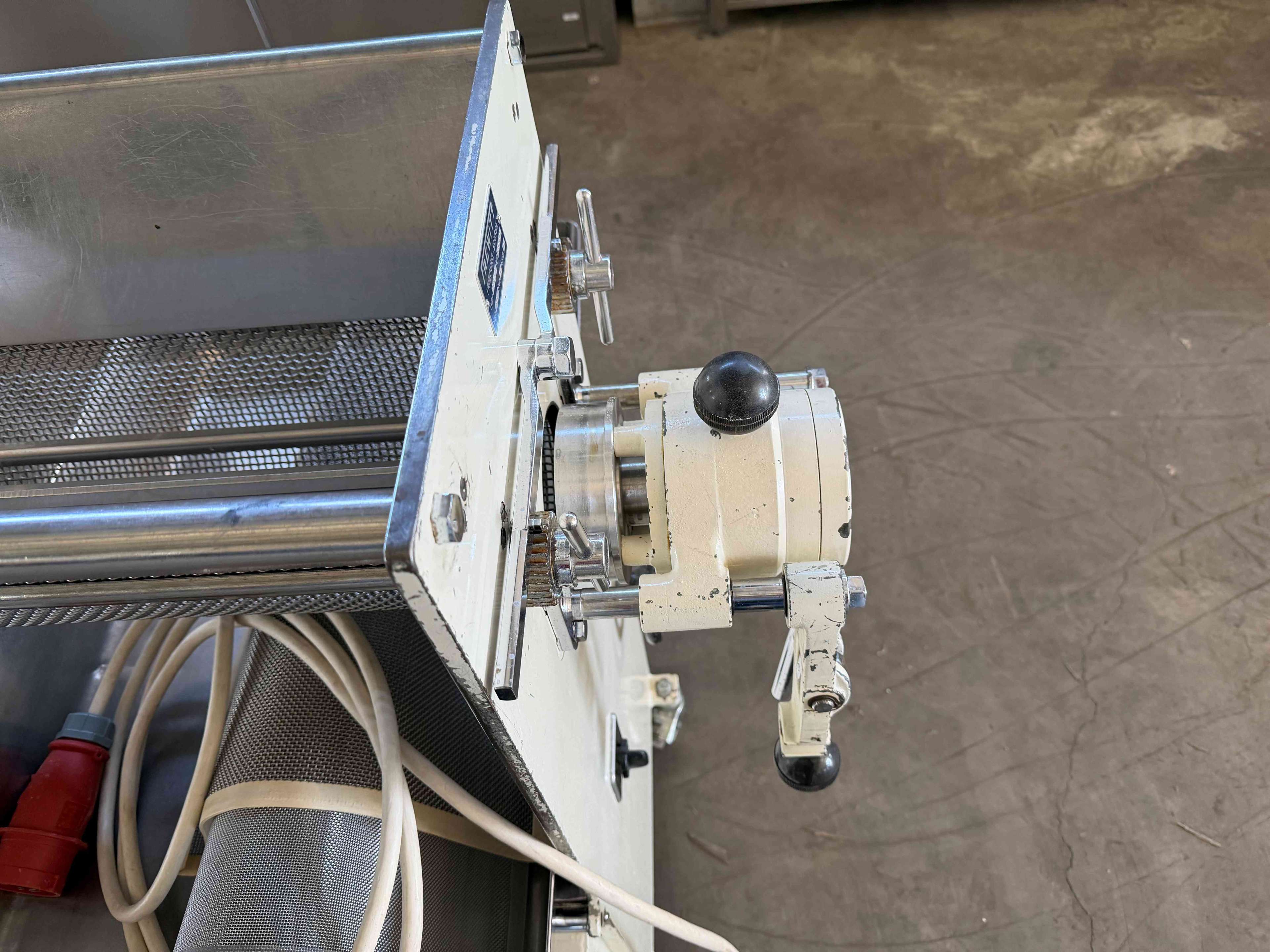

Drive:
The machine is driven by a 220/380-volt, 1 hp three-phase motor via a continuously variable transmission. This adjusts the rotor speed to suit the material being processed. This ensures the machine achieves its maximum possible output.
