Machines
Filling and capping machine
Item No.:2400
Manufacturer:Zellwag
Type:Z-201 S-2
Year:2017
Serial Number:1050
Location:89547 Gerstetten
Additional Information
Other Information:GMP design
Continuous multi-format prism transport system
Filling module with 2 rotary piston pumps and an immersion nozzle system
1 set with dosing volumes 10–35 ml
1 set with dosing volumes 30–155 ml
Sorting and feeding system for stoppers
Sorting and feeding system for screw caps or pill-proof caps
Double stopper insertion station
Double screw-on cap station
Double pill-proof cap station
Bottle height 74.2 mm – 142.9 mm, technical limit 160 mm,
Bottle diameter 29.0 mm – 61.7 mm, technical limit 65 mm
Output:
up to 50 ml – 40–50 units/min
up to 125 ml – 30–35 units/min
up to 250 ml – 25–30 units/min
Extensive range of accessories
Complete documentation including requirements specification/URS; FAT; DQ qualification plan; IQ/OQ risk analysis; pre-approval;
DQ qualification report
IQ/OQ qualification plan
IQ/OQ qualification report dated March 2019
Performance qualification (PQ) dated August 2019
Full commissioning in 2019
Similar Products
Machines
New
Machines
New
Machines
New
Machines
New

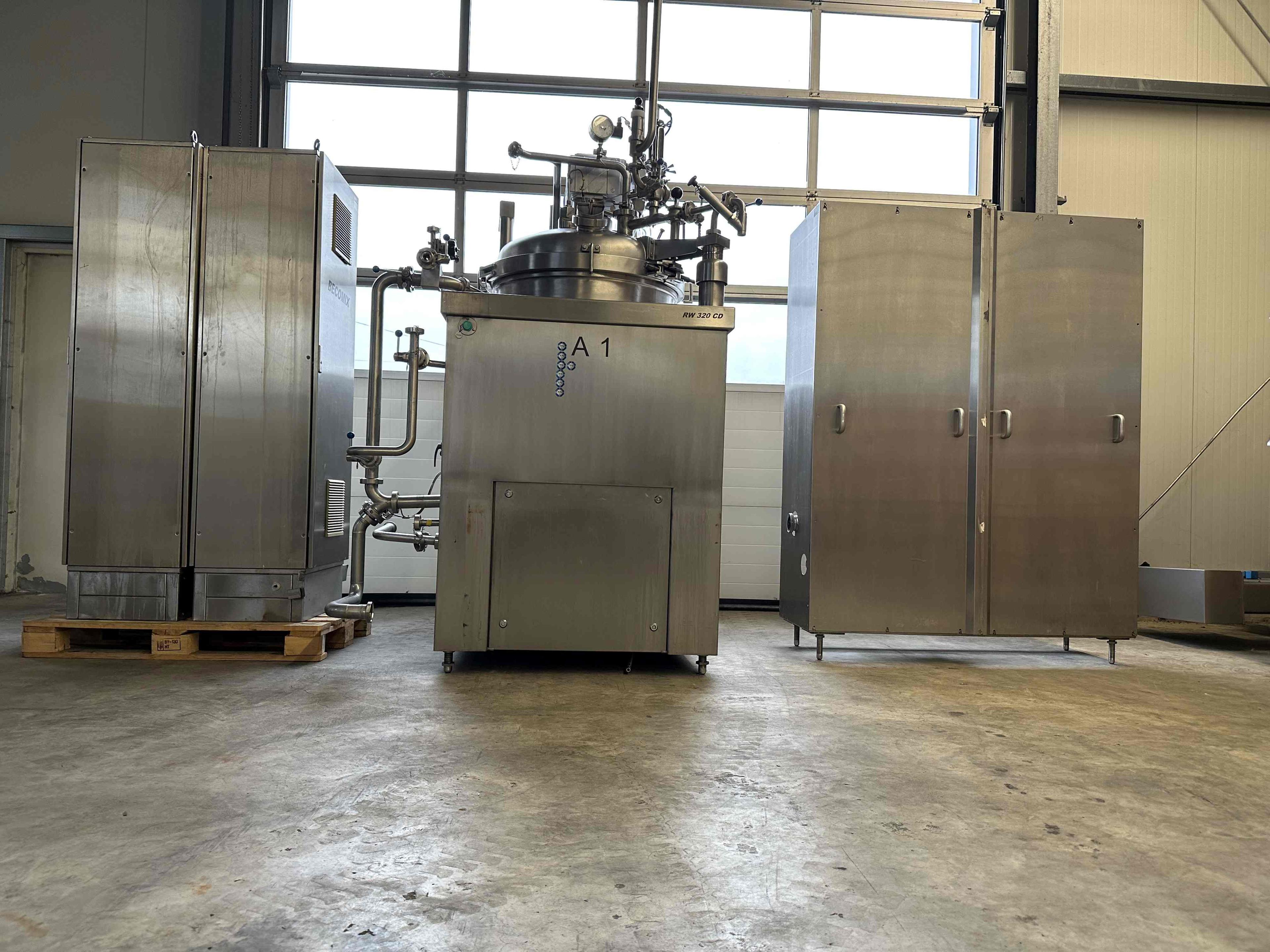

Process plant / Vacuum homogenisation plant
